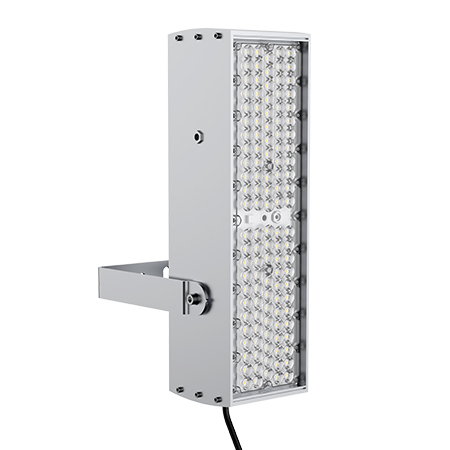

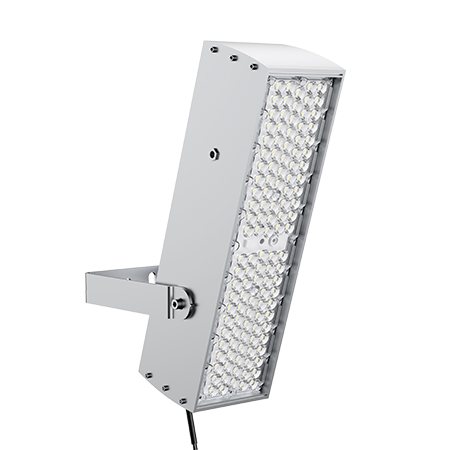

SK931 LED 球场灯
-

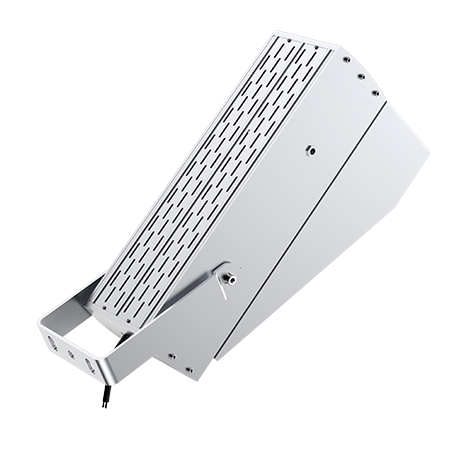

Manufactured with the process of heatsink fin technology , Heatsink Fin riveting design, hollow in the middle of
- 产品信息
- 技术参数
- 应用方案
- 下载中心
-
Manufactured with the process of heatsink fin technology , Heatsink Fin riveting design, hollow in the middle of the heat sink, increasing air convection, better heat dissipation.
The prodcution efficeieny is high ,the heat dissipation performance of materials is good , And the weight is generally 1time lighter than that of common products .
It is easy to install for 300W per module ,boasting a higher coset proformance .
Holder Angle-adjustable 270degree
Protection grade reaches IP67
118in1 SMD5050 Solution ,high power ,high lumnious efficacy 150lm/W
| LED Chips:Lumileds5050 118*1=118pcs |
| Rated Power:300W |
| Input Voltage:90-305Vac |
| PF:0.95 |
| IP Rating: IP66 |
| Lumious(lm/w):155lm/w±5% |
| CCT(K)：3000K/4000K/5000K/5700K/6500k |
| CRI>80 |
| Beam Angle: 20°/40°/60°/vertical asymmetric 50° |
| Drivers:Meamwel HLG-320H 1pcs |
| Lifespan(H):>50,000 |
| Work Temp.:-30℃ ~ 55℃ |
| Warranty:5years |
| Size:185*648.3*147mm |
| package:71*24*19cm/1pcs/cartons/7.8kgs |
